AL-KO Trailer Spares
We hold a large range of AL-KO coupling & brake spares along with accessories within our shop as they are an important requirement when maintaining your trailer/caravan.
If you are needing an item which you are unable to identify or which we have not illustrated please telephone 01246 202543 for further assistance.
AL-KO Coupling Spares
To order spares we will require additional information due to the vast number of models available
e.g. - the information from the plate shown on item 1

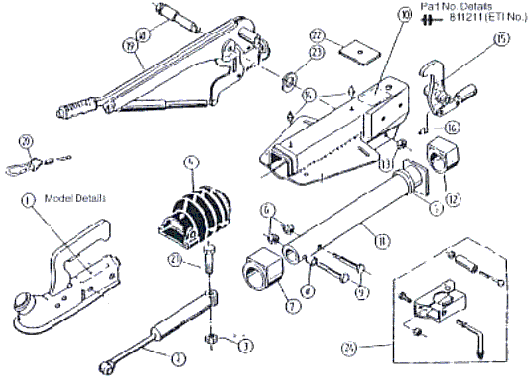

Example of a Delta Over Run Coupling
1 | Coupling Head | 9 | Hexagon Bolt | 17 | Washer |
---|---|---|---|---|---|
2 | Damper | 10 | Housing complete with bearings | 18 | Handbrake Pivot Bolt |
3 | Hexagon Nut | 11 | Overrun shaft | 19 | Handbrake Assembly |
4 | Gaitor | 12 | Rear bearing bush (not reamed) | 20 | Breakaway Cable |
5 | Bump Rubber | 13 | Hexagon Nut | 21 | Hexagon Bolt |
6 | Hexagon Nut | 14 | Grease Nipple | 22 | Reinforcement Plate |
7 | Front bearing bush (not reamed) | 15 | Over Run Lever | 23 | Washer |
8 | Spacer | 16 | Grease Nipple | 24 | Jockey Wheel Clamp |
AL-KO Break Spares
To order spares we will require additional information due to the vast number of models available
e.g. - the information from the plate

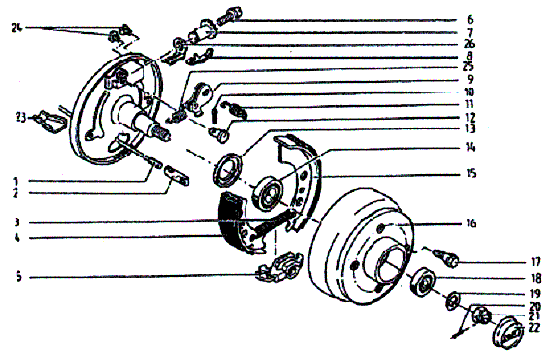

Example of a brake assembly
1 | Detachable bowden cable | 11 | T spring | 19 | Safety washer |
---|---|---|---|---|---|
2 | Cable eye (slug) | 12 | Bearing bolt | 20 | Split pin |
3 | Pull off spring | 13 | Oil seal | 21 | Castle nut |
4 | Brake shoe | 14 | Bearing | 22 | Dust cap |
5 | Expander | 15 | Brake shoe | 23 | Bowden cable half shell |
6-8 | Adjuster complete | 16 | Brake drum | 24 | Plastic plug |
9 | Reverse lever assembly LH or RH | 17 | Wheel bolt | 25 | T spring LH or RH |
10 | Split pin | 18 | Bearing | 26 | Reversing spring |
